Multiflex 55HP Steering Kit – 18ft

Premium Quality Rotary Mechanical System

The Multiflex Lite 55 (MS2 series) is a complete mechanical steering solution specifically engineered for small outboard engines up to 55HP (40kW). This all-in-one kit provides a smooth, responsive steering experience for tenders, RIBs, and small runabouts. Designed for longevity in harsh marine environments, it features non-corrosive materials and high-grade stainless steel cable ends.

RELIABILITY: Engineered to exceed ISO 8848/9775 standards and conform to Recreational Craft Directive 2013/53/EU for maximum safety.

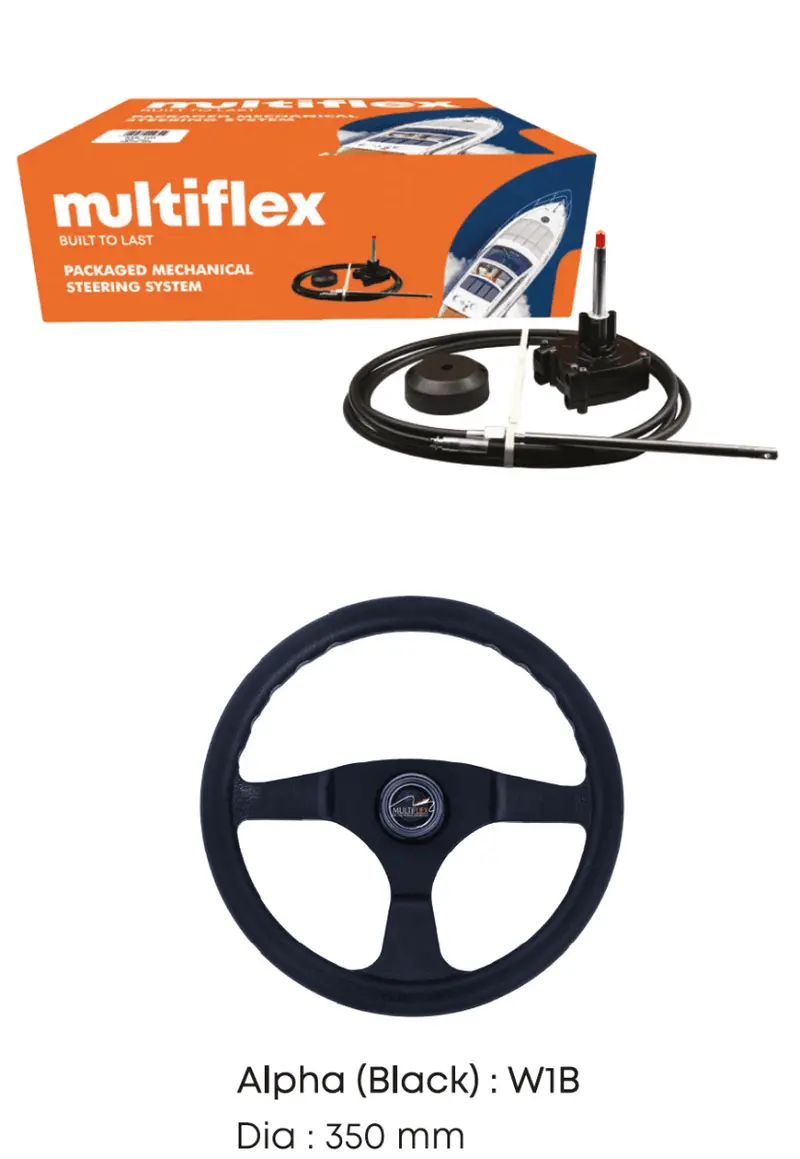

What’s in the Box?

• ✔ LM-H-201 Helm: Compact rotary reduction gear
• ✔ SC-18-18 Cable: 18ft (5.49m) length
• ✔ Mounting Bezel: 90-degree black finish

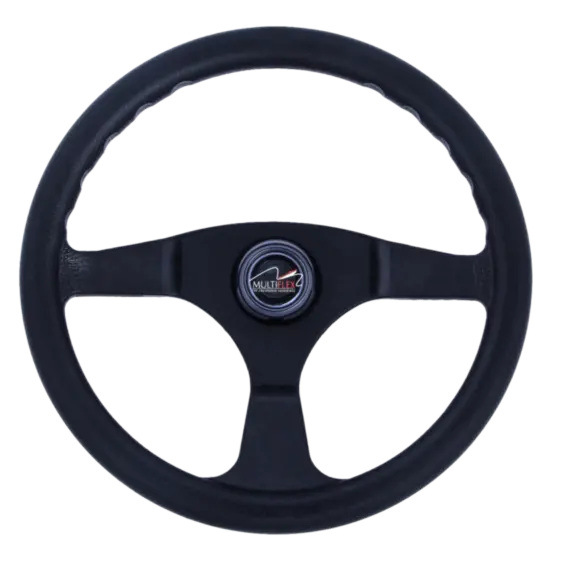

• ✔ Steering Wheel: 13.5″ (350mm) diameter

Technical Specs

Max Horsepower	55 HP (40kW)
Turns Lock-to-Lock	2.5 Approx
Cable Length	18 Feet (5.49m)
Cable Stroke	230 mm (9″)
Min. Bend Radius	200 mm (8″)
Shaft Diameter	3/4″ Tapered

Compatibility / Fitment Guide

Application	Engine Range	Notes
Outboard Engines	Up to 55HP (All Brands)	Yamaha, Suzuki, Mercury, Tohatsu, etc.
Boat Types	Small RIBs, Tenders, Runabouts	Not for high-speed racing apps.
Dash Thickness	12.7mm to 54mm	Fits standard console mounting holes.

OEM Cross Reference

Teleflex / SeaStar	Compac-T / SSC 1300 series
Ultraflex	T67 Helm / M-58 Cable
Multiflex Component Parts	LM-H-201 (Helm), SC-18-18 (Cable)

Questions & Answers

Is this a genuine original part?

Yes, this is a genuine Multiflex Lite 55 steering kit. Multiflex is a global leader in marine steering systems, often used as OEM equipment by major boat manufacturers.

How do I know if it is compatible?

This system is designed specifically for outboards up to 55HP. Check that your current cable is a standard helical light-duty type (similar to Teleflex SSC 1300). If your engine exceeds 55HP, please look for the Multiflex 150HP planetary system.

How do I measure the steering cable length?

Measure from the center of the steering wheel to the side of the boat (A), from the side to the transom corner (B), and from the transom corner to the center of the engine tilt tube (C). Add A+B+C and deduct for 90-degree bends to find your total length in feet.

Note: Please verify your outboard’s horsepower and required cable length before purchasing. For expert assistance, contact the team at 4boats.co.uk.
